Saturday, October 1, 2011

Portlets - Relationship With J2EE and Servlet Specification

In my previous post - An Introduction to Portal and Portlets we had an overall idea about Portal and Portlets and got answer to many common questions like - What is Portal ? What is Portlet ? What is Portal Container ? What are the features provided by Portal applications ? etc.

In this post, I will try to explain What is Portlet Specification ? What is relationship between Portlet API and J2EE specification ? What is similarities and differences between Portlet API and Servlet Specification ?

Let's start with What is Portlet Specification?

Portlet Specification, or Java Portlet Specification is a specification provided by JCP (Java Community Process) which defines Portlet API and standardizes rules for various components of Portlet API (like portlet preferences, user data, portlet request and response, deployment, packaging, security etc) to achieve interoperability among various portlets and portals.

The first version of Portlet Specification (JSR-168) was released in October, 2003. In  February 2006, the second enhanced version of Portlet Sepecification (JSR-286).

(To learn about differences between JSR-168 and JSR-286, keep following my future posts :-) )


Well, we all know that for Web Applications, a specification is already there named: J2EE (Java 2 Enterprise Edition) specification. Then why we need a separate specification for Portlets.

The answer lies in similarities and differences between Portal application (or Portlets) and Web Applications (or Servlets).

Just have a look at following pictorial comparison between a J2EE Web Application and a Portal Application.
Web Application vs Portal Application
Don't both of them look and work in almost same manner? For example, a web application can contain multiple servlets and a portal application can contain multiple portlet applications. Servlets process incoming requets and generates output (HTML), same way, portlets also process incoming requests and generates markup fragments (a part of entire output).

Yet, there are some subtle  differences. For example, incoming requests in case of portlets are further divided into two categories: ActionRequests and RenderRequests (Keep following my future posts for more details about Request Types in Portlets), portal does content aggregations from different portlets before sending output back to the client. Each portlet can have their own preferences (called portlet prefrences), portal provides personalization and other features which a general web application doesn't do.

From above, what we can say is that portal applications are sophisticated version of web applications with all the features a web application provides along with some specialized features like content aggregation, personalization, single sign-on etc.  Similarly, portlets are also analogous to servlets in terms of functionality, concepts and behavior.

Due to all these reasons, Portlet Specificaiton (or Portlet API V1.0) is based on J2EE V1.3  specification. Portlets and Portlet Containers meet all the requreiments specified in J2EE specification.  Poerlet API V1.0 derives many functional and behavioral specifications from Servlet Specificaton 2.3.

Similarly, Portlet API 2.0 is based on J2EE V1.4 and Servlet Specification 2.4.

Following table provides comparision between Portlet and Servlets from various angle:

                            Servlets
Portlets
Servlets are Java technology based web components which are managed by Servlet Container or Servlet Engine
Servlets are Java technology based web components which are managed by specialized containers called Portlet Container
Servlets generates dynamic content as output
Portlets also generates dynamic contents as output but the output is only fragment of the markup which will be aggregated by portal into final page
Servlets works via request/response mechanism
Portlets also work via request/response mechanism, however, portlet  request/response mechanism is more refined (further categorized into action request and render request)
Servlets are directly bound to URLs
Portlets are not directly bound to URLs
Servlets don’t have concept of modes and window states
Portlets have pre-defined modes (View,Edit,Help etc) and window states (minimized,normal,maximized)
In servlet, there is no concept of multiple instances because they do not directly have any visibility on client side.
Portlet can exists multiple times on a single page each instance being independent of each other
Servlets don’t have any concept of preferences to store any customization data like portlets
Portlets have concept of Portlet Preferences where you can store and retrieve any customization and configuration data specific to that particular instance of the portlet on the page
Servlets don’t have access to user profile information (infact in web app, there is no direct concept of user profile)
Portlets have access to user profile information
Servlets do not have URL rewriting functions similar to Portlets
Portlets have URL rewriting functions for creating hyperlinks within their content, which allow portal server indenpendent creation of links and actions in page fragments
Servlet session has only one common scope for store session level data
Portlet session is further  divided into two scopes: Application-Wide scope and Portlet’s Private scope.
Servlets have access to client request URLs, can set character encoding and HTTP headers on response.
Portlets don’t have access to client request URLs directly and cannot set character encoding or HTTP headers on the response.

A portlet application  can contain JSPs and Servelts bundled with Portets and shares classloader, application context and session.

Portlets can leverage servlets, JSPs and JSP tab libraries to generate output markup fragments. A portlet can call a JSP or Servlet using portlet request dispatcher just like a servlet can invoke another servlet or JSP.

When a portlet invokes a servlet or JSP,
  • All the portlet request attributes gets transferred to servlet request.
  • Attributes set in portlet session are accessible from servlet session and vice-versa.
  • Both portlet and servlet shares same output stream.
A portlet container is nothing but extension of servlet container. It can be built on top of existing servlet container or a portlet container itself can implement all the features of a servlet container.

That's it on Portlet Specification and it's relationship with J2EE and Servlets.
Keep following my future posts on more details about Portlet API.

Please provide you valuable comments/suggestions.

Wednesday, September 28, 2011

An Introduction to Portal and Portlets



With the great invention of internet, a new era of software called web or website had begun.  As the time passed, web technologies grew up from just simple static HTML to very powerful web technologies and frameworks like JSP, Servlets, DHTML, XML, CSS, Javascript , AJAX, Spring, Struts, Flash, Dreamweaver etc to provide extremely rich web applications having stunning look and feel, awesome GUI features, great level of user interactivity, graphics and animation based presentation etc.

The revolution didn’t stop and continued to take the web technologies a step further which introduced a new term called Web Portal or simply Portal.  In today’s world we keep on hearing worlds like Portals, Portlets almost every day. Surely, the questions arise in our mind: What is this portal? What is portlet? How’z it different from a regular web application?

I will try to explain all these terms in context of Java/J2EE.

Let’s being with What is a Portal ?

A portal is a web based application that –commonly- provides personalization, single sign on, content aggregation from different sources and hosts the presentation layer of Information Systems.

Aggregation means integrating information(content) from various different sources (by sources, it means web applications) in a single web page.

A portal may also have sophisticated personalization features to provide customized content to users. Portal pages may have different set of portlets creating content for different users.

What is a Portlet?

A portlet is a Java technology based web component, managed by a portlet container.  They are pluggable user interface components which works very similar to web applications (i.e. processes requests and generates dynamic content) and make up the presentation layer of entire Portal.

The content generated by a portlet is also called a fragment. A fragment is a piece of markup (e.g. HTML, XHTML, WML) which is aggregated by portal with fragments generated by other portlets to form a complete portal page which is then presented to end user. The lifecycle of a portlet is managed by the portlet container.

Web clients interact with portlets via a request/response implemented by the portal. Normally, users interact with content produced by portlets, for example by following links or submitting forms, resulting in portlet actions being received by the portal, which are forwarded by it to the portlets targeted by the user's interactions.

The content generated by a portlet may vary from one user to another depending on the user configuration for the portlet.


Huh !!! Too much of techi-talk right? Alright, let me try to explain it with simple example.

I believe, most of all have used i-Google(http://www.google.com/ig). Now that’s perfect example of a Portal.

Following figure shows what’s explained above:



Here entire application i-Google can be seen as a Portal and each individual application (Gmail, Today’s Horoscope, Google Translate etc) running on the page (which you see in above figure) can be seen as individual Portlets.

Here if we see, i-Google provides all the features described in the Portal definition earlier.  For example,

  1. Content Aggregation – It aggregates content from individual portlet application and shows it as a single web page which you see in previous figure.

  1. Single Sign-On – Once you log-in to i-Google. That’s it. You don’t need to log-in again to any portlet application which uses the same authentication platform. For example, Gmail as shown in previous figure.

  1. Personalization – Each user can change the look and feel, color scheme etc according to his own choice by changing the theme.

Good enough !  From so many techie definitions and example, now we can conclude that a Portal application is made-up of three main building blocks:

  • Portal
  • Portlets
  • Portlet Container

We already saw what is Portal and Portlets. But what is Portlet Container?  Well here it is:

As we understood that a portlet is nothing but another type of java technology based web component, we definitely need a container where it can be hosted and run similar to web containers where we host the normal web applications (war files).

A portlet container runs portlets and provides them with the required runtime environment. A portlet container contains portlets and manages their lifecycle. It also provides persistent storage for portlet preferences. A portlet container receives requests from the portal to execute requests on the portlets hosted by it.

A portlet container is not responsible for aggregating the content produced by the portlets. It is the portal who takes care of it.

A portal and a portlet container can be built together as a single component of an application suite or as two separate components of a portal application.

Putting it all together, following figure gives a high level view of what a portal application consists of and how a request is processed.


Here if you see, HTTPRequest from the client is further divided into two sub categories: Render Request and Action Request. (I will explain these with more details in my future blogs on Portlets. Keep reading my blogs  :-) )

Hope this blog was helpful in understanding basics of Portal and Portlet technologies.

Please provide you valuable comments/suggestions.

Also keep watching my blogs for some more interesting and detailed insights into portal and portlet technologies.

Tuesday, September 20, 2011

Ajax Best Practice in Portlets


Since the time AJAX has come into picture and with various new AJAX frameworks (like DOJO, JQuery, Yahoo UI Library, Google Web Tollkit etc), most of the websites now-a-days are enriched with AJAX to provide Outstanding and Stunning GUI features to the users.  With Portals and Portlet technologies, the web development has become even better than ever before.

This being said, definitely there are plenty of scenarios where we would like to use AJAX with Portlets too. Now this is a bit tricky. There is a subtle difference in implementation (processing user request, serving web response, maintaining state, maintaining lifecycle of server side components like servlets, jsp etc) between regular web applications and portlet based applications.  This difference makes AJAX implementation a bit tricky when it comes to Portlets.

Here, I will explain how to implement AJAX in both JSR 168 and JSR 286 Portlets.

Let's start understanding it with the difference I described above.  Web applications don't have states/modes similar to Portlets (View Mode, Edit Mode etc).

Following is a lifecycle diagram of a java based web application.


Life cycle Of A Servlet Based Web Application


Here as we see, all the request (be it a normal web request or an AJAX request) are processed by only 1 method: service method of the servlet. Also there is no need of generated markup (output HTML, XML etc by service method) aggregation as there is only 1 application running at a time.

Now, moving to Portlets from Web Application, the scenario is a bit different.  In case of portlets, there are multiple web-applications (called portlets) which runs in small i-frame like windows on a single web page. All of these portlets run under a Portal application (controller by portal container) which controls multiple aspects of the entire application like user-interaction with individual portlets, their window states (Minimized, Maximized etc), entire web-page output (which is eventually aggregation of markup generated by individual portlets) etc.  Following block diagram illustrates how overall portal application works:

Portal Web Application


When user interacts with a particular portlet, portal container makes sure request is passed to appropriate portlet, and generated output (markup) is aggregated appropriately with entire web page output without affecting other portlets.

Following diagram shows how request are processed in a portlet based application.




Here we can see that web requests are divided into two categories:

RenderRequest:  These are the requests when portlets are in view mode and being rendered (e.g. when the first time users requests a web page via HTTP GET or POST URL request)

ActionRequest:  These are HTTP GET or POST requests initiated due to user interaction with portlet (e.g. clicking any URL on the page, submitting form etc).


Here if we see, every request - be it a render request or action request, goes through render phase (doView() method).  This means, Portlet URLs enable window state changes and mode changes that require a subsequent render request to the portal or portlet container. The result? The response contains not only the content for the target portlet, but also that for the entire portal, including all the other rendered portlets. This is true in case of AJAX request too.  Following figure shows an example of a Sample JSR168 Portlet that made an asynchronous call with actionURL, causing the entire portal page to be embedded in the portlet window as a part of AJAX response. This is obviously what we don't want.

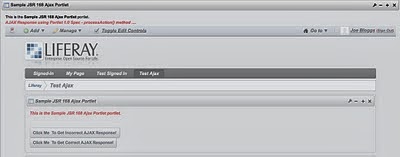

AJAX Implementation in JSR-168 using processAction() method
In above figure, we are supposed to get only "AJAX Response using Portlet 1.0 Spec - processAction() method ..." as AJAX response, however along with that, we got entire HTML of the portlet which got appended to the response by doView() method after request was processed by processAction() method.

To resolve this problem, we have two solutions depending on which portlet spec. you are using.

For JSR-168 based portlets, there is no provision in the portlet specification which says how to deal with AJAX requests.

So for JSR-168 portlets, we have to follow a trick.  Well, what's that ?

Answer to this question lies in Portlet Specification 1.0 (JSR-168).

Following is the snippet from Portlet Specification 1.0 :

"A Portlet Application is also a Web Application. The Portlet Application may contain servlets and JSPs in addition to portlets. Portlets, servlets and JSPs may share information through their session.

The
PortletSession must store all attributes in the HttpSession of the portlet application. A direct consequence of this is that data stored in the HttpSession by servlets or JSPs is accessible to portlets through the PortletSession in the portlet application scope. Conversely, data stored by portlets in the PortletSession in the portlet application scope is accessible to servlets and JSPs through the HttpSession."

This means, we can divide our logic into two pieces:

For regular portlet requests, we can extend GenericPortlet class and implement doView() and processAction() methods in the normal way we always do.

For Ajax requests, we can write a separate Servlet which will handle ajax requests like normal web applications do.

Following figure shows what exactly I am talking about.

Ajax Implementation Best Practice for JSR-168 Portlet



So what all we need to do is:

1. Write a class extending GenericPortlet (or any other portlet like MVCPortlet in Liferay etc) for regular general portlet request processing.

2. Write a servlet to handle ajax requests like following:

public class AjaxServlet extends HttpServlet {
protected void doPost(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {

              //Write your business logic for Ajax processing here
}

protected void doGet(HttpServletRequest request,
HttpServletResponse response) throws ServletException, IOException {
doPost(request, response);
}

}



3. Write javascript functions to implement ajax call (preferably using some good javascript/ajax library like jquery, dojo etc).

Following in an example of such a javascript function using jquery.

function <portlet:namespace/>_callAjax()
{
    var url='<%=(request.getContextPath() + "/AjaxServlet")%>';

    //Make ajax call

    $.ajax({
    type : "POST",
    url : url,
    cache:false,
    dataType: "text",
    success : function(data)
    {
          //Write you success logic here
    },
    error : function(XMLHttpRequest, textStatus, errorThrown)
    {
          //Write you error-handling logic here
    }
  });
};


That's it. You are done :)


Now, lets's move to JSR-286 Portlets (Portlet Specification 2.0).  Here, the situation is better in a way that we don't have to worry about writing a separate servlet for Ajax requests.  Portlet itself provides special method called serveResource(ResourceRequest request, ResourceResponse response) to do this.

Requests made using ResourceRequest (generated by resourceURL tags provided by portlet taglib), are served by serveResource() methods.

Following figure shows how it works:


Ajax Implementation in JSR-286 Portlet



Following is a sample PortletClass (extending GenericPortlet) showing how to do it.


package com.jsr286.portlets;

import java.io.IOException;

import javax.portlet.ActionRequest;
import javax.portlet.ActionResponse;
import javax.portlet.GenericPortlet;
import javax.portlet.PortletException;
import javax.portlet.PortletRequestDispatcher;
import javax.portlet.RenderRequest;
import javax.portlet.RenderResponse;
import javax.portlet.ResourceRequest;
import javax.portlet.ResourceResponse;

import com.liferay.portal.util.PortalUtil;

public class TestPortlet extends GenericPortlet {

protected String viewJSP;

public void init() throws PortletException
viewJSP = getInitParameter("view-jsp");
}

protected void doView(RenderRequest request, RenderResponse response)
throws PortletException, IOException {

System.out.println("########### Inside com.jsr286.portlets.TestPortlet ... doView() method.....");
include(viewJSP, request, response);

}


public void processAction(ActionRequest request, ActionResponse response)
throws PortletException, IOException {

System.out.println("########### Inside com.jsr286.portlets.TestPortlet ... processAction() method.....");
HttpServletResponse httpResp = PortalUtil.getHttpServletResponse(response);
        httpResp.setContentType("text");
        httpResp.getWriter().print("AJAX Response using Portlet 2.0 Spec - processAction() method .... ");
        httpResp.flushBuffer();
        return;
}

protected void include(String path, RenderRequest renderRequest,RenderResponse renderResponse) throws IOException, PortletException
{
PortletRequestDispatcher portletRequestDispatcher = getPortletContext().getRequestDispatcher(path);
if (portletRequestDispatcher == null
System.out.println(path + " is not a valid include");
else
portletRequestDispatcher.include(renderRequest, renderResponse);
}
}
public void serveResource(ResourceRequest request, ResourceResponse response) throws PortletException,IOException
{
System.out.println("########### Inside com.jsr286.portlets.TestPortlet ... serveResource() method.....");
        response.setContentType("text");
        response.resetBuffer();
        response.getWriter().print("Correct Ajax Resopnse from Portlet 2.0 Spec - serveResource() method .... ");
        response.flushBuffer();
}


}


And following is a JSP fragment showing how to place AJAX call using resourceURL.

<%@ taglib uri="http://java.sun.com/portlet_2_0" prefix="portlet" %>

<portlet:defineObjects />

<portlet:resourceURL var="ajaxResourceUrl"/>

<script type="text/javascript">


function <portlet:namespace/>_callAjax()
{
    var url = <%=ajaxResourceUrl%>';
    //Make ajax call

    $.ajax({
    type : "POST",
    url : url,
    cache:false,
    dataType: "text",
    success : function(data)
    {
          //Write you success logic here
    },
    error : function(XMLHttpRequest, textStatus, errorThrown)
    {
          //Write you error-handling logic here
    }
  });
};

</script>


That's it on how to implement AJAX in both JSR-168 and JSR-286 portlets.

Please provide your valuable comments/suggestions.
